EMMA MRI system
Time Medical is the world leader in developing dedicated MRI systems for niche markets of neonate, breast, and brain imaging. TM has developed the world’s first Neonatal MRI – NEONA. The NEONA system has won the award of Prix de l’Éstat de Genève in the 2016 Geneva Invention Convention. Working with Memorial Sloan Kettering Cancer Center in New York, TM has developed the dedicated Abbreviated Breast MRI (ABMR) system for precise breast cancer screening. In addition, TM has also developed ultrahigh field 7T – 9.4 T (tesla) biomed MR systems for use in biomedical research, neurological research, and preclinical trials in pharmaceutical R&D.
THE REVOLUTION IN MRI SYSTEM

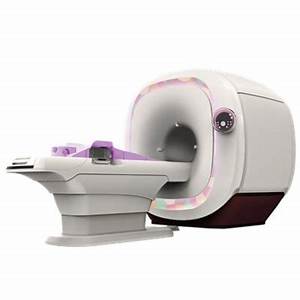

The EMMA 1.5T MRI is designed to offer breast imaging centers a new adjunctive tool to their current equipment options. Emma is a whole body MRI with dedicated breast coils for exclusive high-quality imaging.
In collaboration with leading breast cancer centers and following new published trends, the EMMA system extends MRI’s strong diagnostic utility with rapid and cost-effective – optimal breast MRI screening exams (AB-Breast MRI). It’s a cutting-edge, humanistic and affordable MRI Breast Scan.
Whether it is concerning a follow-up of questionable Mammogram results or a confirmation of other borderline results and known dense breast situations, the EMMA MRI offers diagnostic benefits and fully functional whole-body scanning. It forges together improved workflow practices to achieve rapid and low-cost examinations as required for breast screening studies as well as to provides thorough and comprehensive gold standard breast exams which high field MRI systems in the industry have generated over the past decades.
On Feb 22 2019, of the Filing device: EMMA 1.5T MRI Systems presented, US FDA has decided to grant its FDA 510k clearance.
Zero Boil-Off Magnet (from Philips)
Near absolute zero helium lost, without the need for a continuous supply of liquid helium.
Three cup-size breast coils
Customized breast coils with 3 cup-size to deliver exceptional breast images.
15-minutes Optimized Protocols
In collaborating with Dr. Christopher Comstock, radiologist at Memorial
Sloan Kettering Cancer Centre of the US, scan time protocols have been significantly reduced from the standard 45 minutes to 15 minutes (By using of Galen's customized protocols).
Strong Gradient
Gradient strength: 44mT/ml (from TESLA, UK)
Slew rate: 275T/m/s2
It helps our system reach new heights in productivity, reliability and patient comfort
Standard Amplitude 33mT/m (Upgradable to 44mT/m)
Standard Slew Rate 120T/m/s (Upgradable to 275T/m/s)
One-button Scan
Our one-button scan combines with Galen's optimal protocol offers simple, user-friendly and efficient workflow.
Al & Cloud (optional)
EMMA comes with A.l. feature (report assistant) to help report writing. EMMA-cloud offers scan results to be easily read and diagnosed everywhere. It can also be upgraded to meet educational, training and research needs.
EMMA capable for whole-body scan.
- Head
- Spine
- Shoulder
- Knee
- Abdomen
- Ankle
- Wrist
- Vascular
